Running Text LED Matrix Parola Library - Esp8266

November 11, 2023










1 Chain LED Matrix   8 x 8

Arduino UNO

CODING:

// Memasukkan pustaka yang diperlukan:
#include <MD_Parola.h>
#include <MD_MAX72xx.h>
#include <SPI.h>

// Mendefiniskan jenis perangkat keras, ukuran, nomor pin keluaran:
#define HARDWARE_TYPE MD_MAX72XX::PAROLA_HW
#define MAX_DEVICES 1 // Definisi jumlah display yang terhubung
#define CLK_PIN    13 // CLK atau SCK
#define Data_PIN   11 // Data atau MOSI
#define CS_PIN     10 // CS atau SS

// Membuat instan baru dari class MD_Parola dengan hardware koneksi SPI:
MD_Parola P = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);



struct animations

{

  textEffect_t   anim_in; // Animation type

  textEffect_t   anim_out;// Animation type

  const char *   textOut;   // Text to display

  uint16_t       speed;        // Animation speed (multiplier for library default)

  uint16_t       pause;        // pause (multiplier for library default)

  textPosition_t just;

};





animations animList[] =

{





  { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "SMK Wachid Hasyim Surabaya ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "B", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"I", 1, 2 ,PA_CENTER},

  { PA_SCROLL_DOWN_LEFT, PA_SCROLL_DOWN_LEFT ,"K", 1, 2 ,PA_LEFT},





{ PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Robotika ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "R", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "O", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"B", 1, 2 ,PA_CENTER},

    { PA_SCROLL_UP_RIGHT, PA_SCROLL_UP_RIGHT, "O", 1, 2 ,PA_RIGHT},

  { PA_SCROLL_DOWN_RIGHT, PA_SCROLL_DOWN_RIGHT, "T", 1, 2 , PA_CENTER},

    { PA_SCROLL_UP_RIGHT, PA_SCROLL_UP_RIGHT, "I", 1, 2 ,PA_LEFT},

     { PA_RANDOM, PA_GROW_DOWN, "K", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},







 { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Jurnalku by Fajar Himawan ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "J", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "U", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"R", 1, 2 ,PA_CENTER},



  { PA_RANDOM, PA_GROW_DOWN, "N", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"L", 1, 2 ,PA_CENTER},





    { PA_RANDOM, PA_GROW_DOWN, "K", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "U", 1, 2 , PA_CENTER},



};







void setup() {

  P.begin();



  for (uint8_t i=0; i<ARRAY_SIZE(animList); i++)

  {

    animList[i].speed *= P.getSpeed(); animList[i].pause *= 500;

  }

}





void loop() {

  static uint8_t i = 0;  // text effect index



  if (P.displayAnimate())// animates and returns true when an animation is completed

  {

    if (i == ARRAY_SIZE(animList))i = 0;  // reset loop index



    P.displayText(animList[i].textOut, animList[i].just, animList[i].speed,

                  animList[i].pause, animList[i].anim_in, animList[i].anim_out);

    delay(500);

    i++;   // then set up for next text effect

  }

}

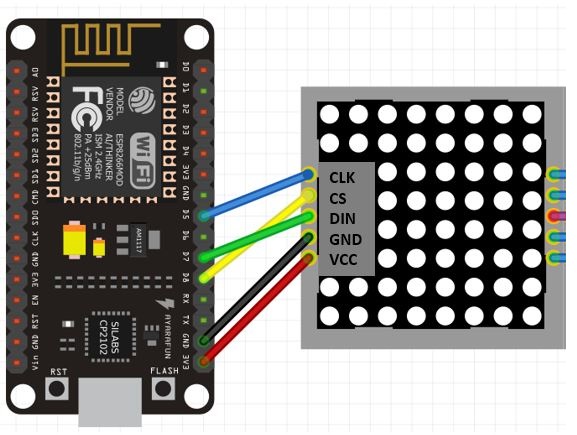

LED Matrix  1 x 8 x 8 ESP8266

CODING:

//Jurnalku by Fajar Himawan

//MAX7219 - using Parola Library to create complex text animations/transition

#include <MD_Parola.h>

#include <MD_MAX72xx.h>


#define HARDWARE_TYPE MD_MAX72XX::FC16_HW

#define MAX_DEVICES 1

#define CLK_PIN   D5

#define DATA_PIN  D7

#define CS_PIN    D8


MD_Parola P = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);


struct animations

{

  textEffect_t   anim_in; // Animation type

  textEffect_t   anim_out;// Animation type

  const char *   textOut;   // Text to display

  uint16_t       speed;        // Animation speed (multiplier for library default)

  uint16_t       pause;        // pause (multiplier for library default)

  textPosition_t just;

};



animations animList[] =

{




  { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "SMK Wachid Hasyim Surabaya ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "B", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"I", 1, 2 ,PA_CENTER},

  { PA_SCROLL_DOWN_LEFT, PA_SCROLL_DOWN_LEFT ,"K", 1, 2 ,PA_LEFT},




{ PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Robotika ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "R", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "O", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"B", 1, 2 ,PA_CENTER},



      { PA_SCROLL_UP_RIGHT, PA_SCROLL_UP_RIGHT, "O", 1, 2 ,PA_RIGHT},

  { PA_SCROLL_DOWN_RIGHT, PA_SCROLL_DOWN_RIGHT, "T", 1, 2 , PA_CENTER},

    { PA_SCROLL_UP_RIGHT, PA_SCROLL_UP_RIGHT, "I", 1, 2 ,PA_LEFT},

     { PA_RANDOM, PA_GROW_DOWN, "K", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},






 { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Jurnalku by Fajar Himawan ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "J", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "U", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"R", 1, 2 ,PA_CENTER},



  { PA_RANDOM, PA_GROW_DOWN, "N", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"L", 1, 2 ,PA_CENTER},





    { PA_RANDOM, PA_GROW_DOWN, "K", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "U", 1, 2 , PA_CENTER},


};




void setup() {

  P.begin();



  for (uint8_t i=0; i<ARRAY_SIZE(animList); i++)

  {

    animList[i].speed *= P.getSpeed(); animList[i].pause *= 500;

  }

}



void loop() {

  static uint8_t i = 0;  // text effect index


  if (P.displayAnimate())// animates and returns true when an animation is completed

  {

    if (i == ARRAY_SIZE(animList))i = 0;  // reset loop index


    P.displayText(animList[i].textOut, animList[i].just, animList[i].speed,

                  animList[i].pause, animList[i].anim_in, animList[i].anim_out);

    delay(500);

    i++;   // then set up for next text effect

  }

}




LED Matrix 4 x 8 x 8
ESP8266
CODING:


//Jurnalku by Fajar Himawan

//MAX7219 - using Parola Library to create complex text animations/transition

#include <MD_Parola.h>

#include <MD_MAX72xx.h>


#define HARDWARE_TYPE MD_MAX72XX::FC16_HW

#define MAX_DEVICES 4

#define CLK_PIN   D5

#define DATA_PIN  D7

#define CS_PIN    D8


MD_Parola P = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);


struct animations

{

  textEffect_t   anim_in; // Animation type

  textEffect_t   anim_out;// Animation type

  const char *   textOut;   // Text to display

  uint16_t       speed;        // Animation speed (multiplier for library default)

  uint16_t       pause;        // pause (multiplier for library default)

  textPosition_t just;

};



animations animList[] =

{


    { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Selamat Hari Pahlawan dan tetap semangat berjuang raih prestasi ya:) dari Kami Robotika SMK Wachid Hasyim Surabaya ", 5, 0, PA_LEFT },



  { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "SMK Wachid Hasyim Surabaya ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "B", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"I", 1, 2 ,PA_CENTER},

  { PA_SCROLL_DOWN_LEFT, PA_SCROLL_DOWN_LEFT ,"K", 1, 2 ,PA_LEFT},




{ PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Robotika ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "R", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "O", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"B", 1, 2 ,PA_CENTER},



      { PA_SCROLL_UP_RIGHT, PA_SCROLL_UP_RIGHT, "O", 1, 2 ,PA_RIGHT},

  { PA_SCROLL_DOWN_RIGHT, PA_SCROLL_DOWN_RIGHT, "T", 1, 2 , PA_CENTER},

    { PA_SCROLL_UP_RIGHT, PA_SCROLL_UP_RIGHT, "I", 1, 2 ,PA_LEFT},

     { PA_RANDOM, PA_GROW_DOWN, "K", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},






 { PA_SCROLL_LEFT, PA_SCROLL_LEFT , "Jurnalku by Fajar Himawan ", 9, 0, PA_LEFT },

  { PA_RANDOM, PA_GROW_DOWN, "J", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "U", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"R", 1, 2 ,PA_CENTER},



  { PA_RANDOM, PA_GROW_DOWN, "N", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "A", 1, 2 , PA_CENTER},

  { PA_BLINDS, PA_GROW_DOWN ,"L", 1, 2 ,PA_CENTER},





    { PA_RANDOM, PA_GROW_DOWN, "K", 1, 2 , PA_CENTER},

   { PA_RANDOM, PA_GROW_DOWN, "U", 1, 2 , PA_CENTER},


};




void setup() {

  P.begin();



  for (uint8_t i=0; i<ARRAY_SIZE(animList); i++)

  {

    animList[i].speed *= P.getSpeed(); animList[i].pause *= 500;

  }

}



void loop() {

  static uint8_t i = 0;  // text effect index


  if (P.displayAnimate())// animates and returns true when an animation is completed

  {

    if (i == ARRAY_SIZE(animList))i = 0;  // reset loop index


    P.displayText(animList[i].textOut, animList[i].just, animList[i].speed,

                  animList[i].pause, animList[i].anim_in, animList[i].anim_out);

    delay(500);

    i++;   // then set up for next text effect

  }

}
